Digital Interpreter unit

64 interpretation channels

Separate volume adjustment loudspeaker and headphones

Direct and relay interpretation

48 kHz audio sampling rate, for

30 Hz to 20 kHz frequency response on all 64 channels

Immune to RF interference

built-in high-speed DSP processing.

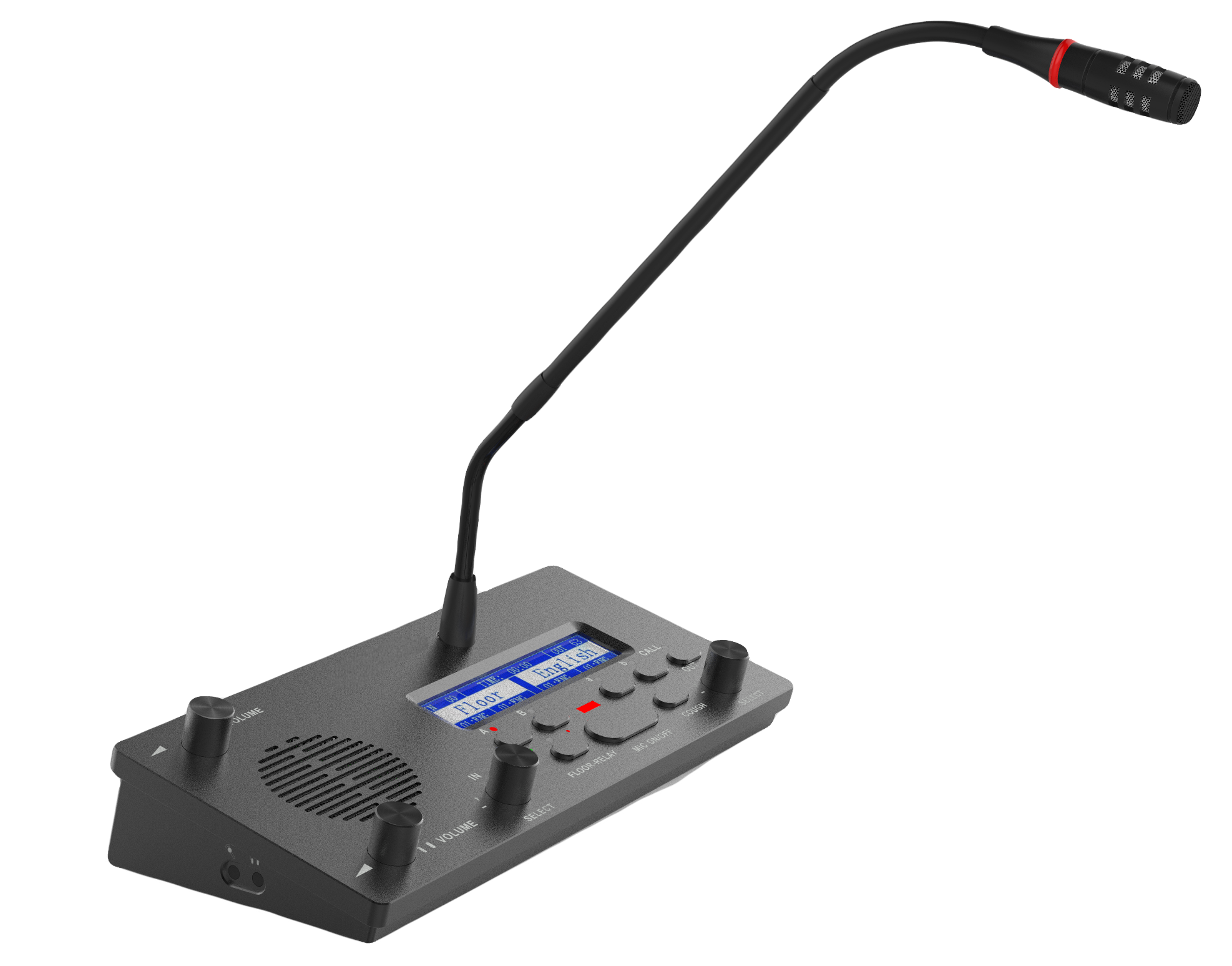

DX-INT Desktop Interpreter Unit

Chairman/Delegate

The development and design of the Digii® DX-INT Desktop Interpreter Unit is based on over 20 years expertise in conference system design.
The digital ring loop bus connection offers maximum redundancy during conferences. The system is scalable and more than 200 units can be linked to one processor. It accommodates up to 64 interpretation channels (incl. floor channel). built-in high-speed DSP processing.
Specifications:
Microphone
Transducer: Electret-condenser
Polar pattern: Uni-directional
Sensitivity: -46dBV/pa
Frequency response: 20Hz~20KHz
Input impedance: 2.2kOhm
Earphones:
Earphone load: >8ohm
Earphone volume: 10mW
Directivity: 0°/180°. > 20 dB (1 kHz)
Equivalent noise: 20 dBA (SPL)
Maximum sound pressure level: 125 dB (THD<3%)
Interface
Display: 320x64 pixels
2 x Ø 3.5 mm Headphone jack
2 x Ø 3.5 mm Microphone jack,
2x RJ45 port,
1x 2.5mm adapter port
Mechanical
Dimensions: h x w x d (mm) 280X128X55
Weight:1.5kg
Color:Black/Grey
